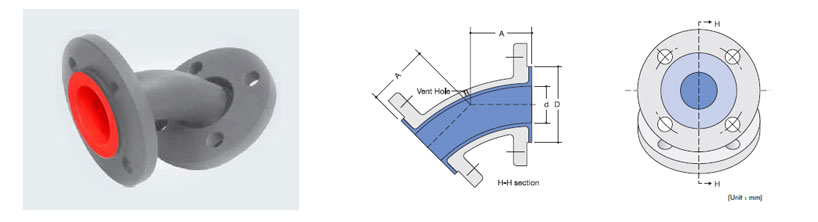

| Nominal Pipe size |
A |
d |
I |
D |
| ANSI 150 LBS |
| 1 (25) |
45 |
19 |
3 |
51 |
| 1 1/2 (40) |
58 |
34 |
3 |
73 |
| 2 (50) |
64 |
46 |
3 |
92 |
| 2 1/2 (65) |
76 |
59 |
3 |
105 |
| 3 (80) |
76 |
74 |
3 |
127 |
| 4 (100) |
102 |
94 |
3 |
157 |
| 6 (150) |
127 |
140 |
5 |
212 |
| 8 (200) |
140 |
190 |
5 |
270 |
| 10 (250) |
165 |
238 |
6 |
323 |
| 12 (300) |
191 |
288 |
6 |
381 |
Note:
- Steel frame :ASTM A234 grade WPB in compliance
with ANSI B16 28
- Steel bend : according to SCH 40 .
- Flange IS 2062 in compliance with ANSI B16.5 /
class 150lbs JIS 10K or DIN is also available on request .
- Standard fixed flanges cne loose flange and one
fixed flange or two loose flanges is on request.
- Lining : PP in compliance with ASTM
F-1545.
